Aftermarket Air Filter Assembly For Coleman Ct200U, Baja Mb165/Mb200, And 196Cc–212Cc Mini Bikes

Description

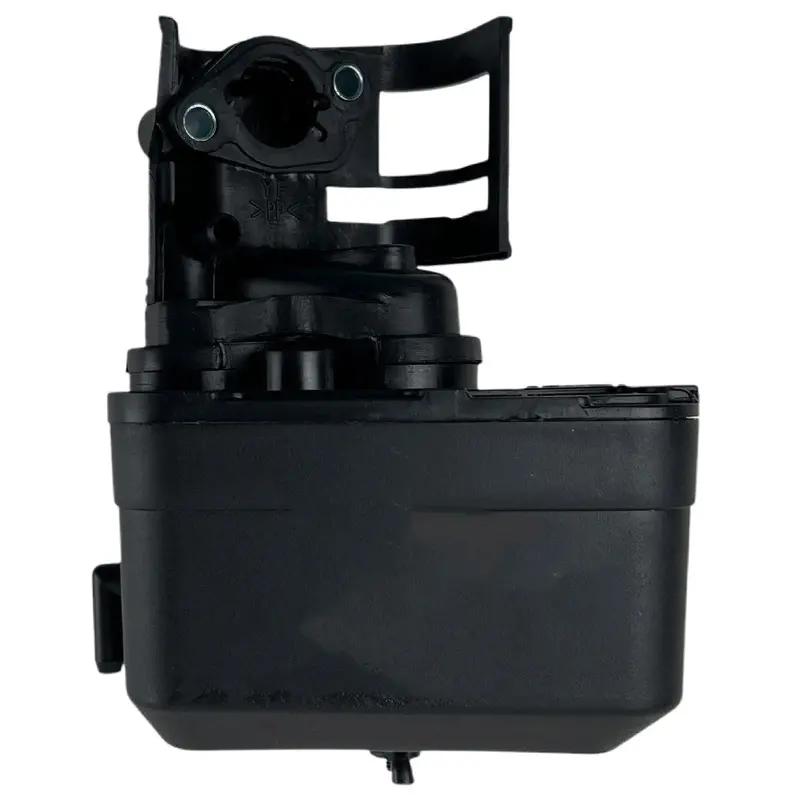

Air Filter Assembly for Coleman 196cc Mini Bike

This air cleaner assembly fits the Coleman B200, B200C, B200R, B200V, B200RS and the B200RSV mini bikes.  About the same as the other Coleman air filter assy we offer, but this one has a nipple on the case.

Air cleaner assembly description:

• Overall dimension are approx. 7.75 in. x 4.00 in. x 5.00 in.
• Metal 6mm x 1.00 wingnut holds on access panel
• Bolt holes where air filter mounts to carburetor are 42.6mm (1.68 in) apart center-to-center
• Does not include the rubber hose near the intake manifold
• Coleman recommends replacing every year.
• Compatible with 196cc 4 stroke, GX200 168F Honda clone engines
• 615216
