Description

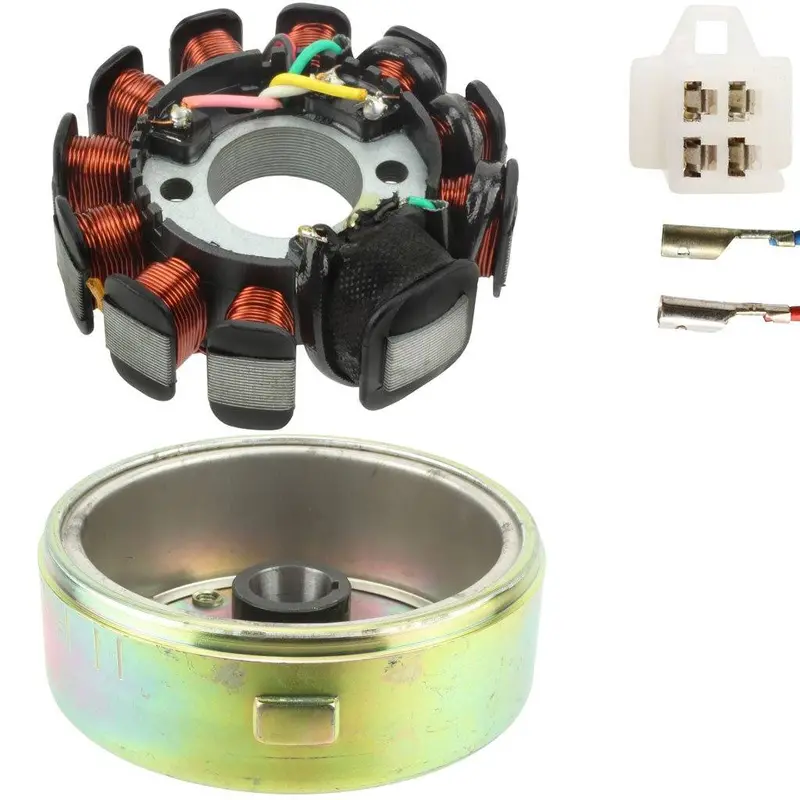

11 Coil Stator Magneto with Matching Flywheel for GY6 125cc and 150cc Engines.
This stator magneto with flywheel is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters. This stator fits GY6 125cc and 150cc models.
Stator description:
- 11 coils (1 wrapped)
- AC
- 7 wires – 4 wire plug – 2 pigtail (+1 trigger wire)
- 2 bolt mounting
- Pick up trigger wire – single wire
- Center hole measurement: 29mm (1.14 in)
- Overall measurement: 89mm (3.51 in)
- Bolt hole spacing: 41mm (1.61 in)
- Bolt hole diameter: 6mm (0.23 in)
- Trigger wire mounting center-to-center: 33.6mm (1.32 in)
- Compatible with GY6 125cc and 150cc 4-strokes
Flywheel description:
- Outside diameter: 109.4mm (4.31 in)
- Inside diameter: 15.5mm (0.61 in)
- 4 mounting holes center-to center adjacent holes: 53.4mm (2.10 in)
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
