Osepp 16×2 Lcd Keypad Shield – Integrated Display & Input For Arduino Uno

Description

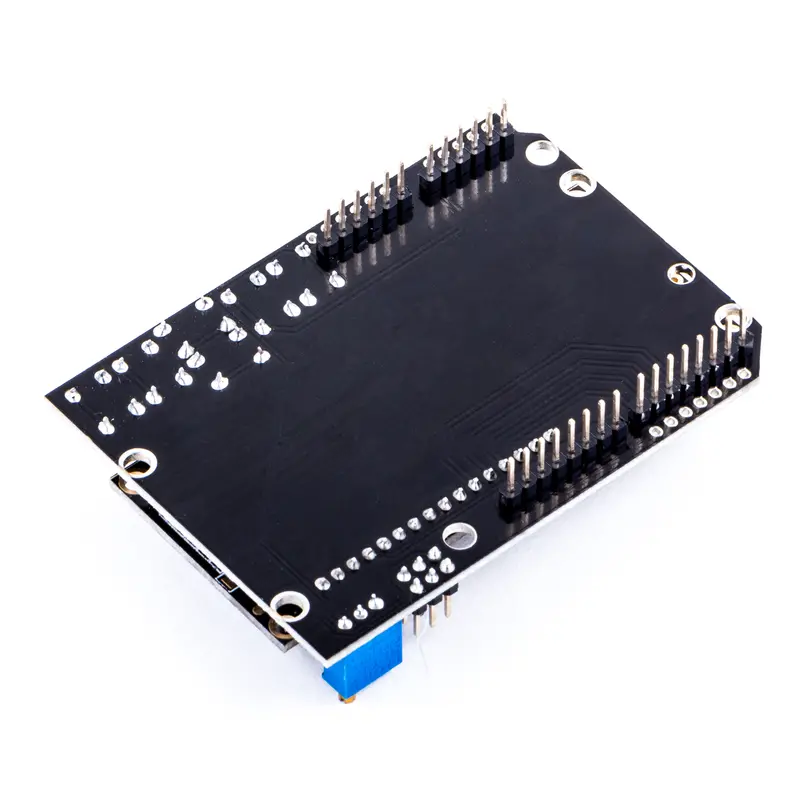

The OSEPP 16 x 2 LCD Display and Keypad shield can plug directly onto the Arduino and Arduino compatible boards. The LCD panel displays characters in white with a blue backlit and can display up to two lines of 16 characters. The shield includes 6 momentary push button that can be used to implement a 5 buttons keypad including up, down, left, right and select function. The sixth push button brings out the Arduino’s reset button to the top of the shield.

The OSEPP 16 x 2 LCD Display and Keypad shield interfaces with the Arduino board using digital pin 4 to 10 and analog pin 0. The contrast can be adjusted via a trim pot and the backlit can be turn on and off. The shield is 5V compatible.

• 100% Arduino compatible.
• Display up to 16 characters by 2 lines.
• Integrated SPLC780D LCD controller and driver.
• Operates on 5V.
• Built-in 5 button keypad.

Technical Schematic (PDF)
Source Code (ZIP)
SPLC780D Data Sheet (PDF)
