Description

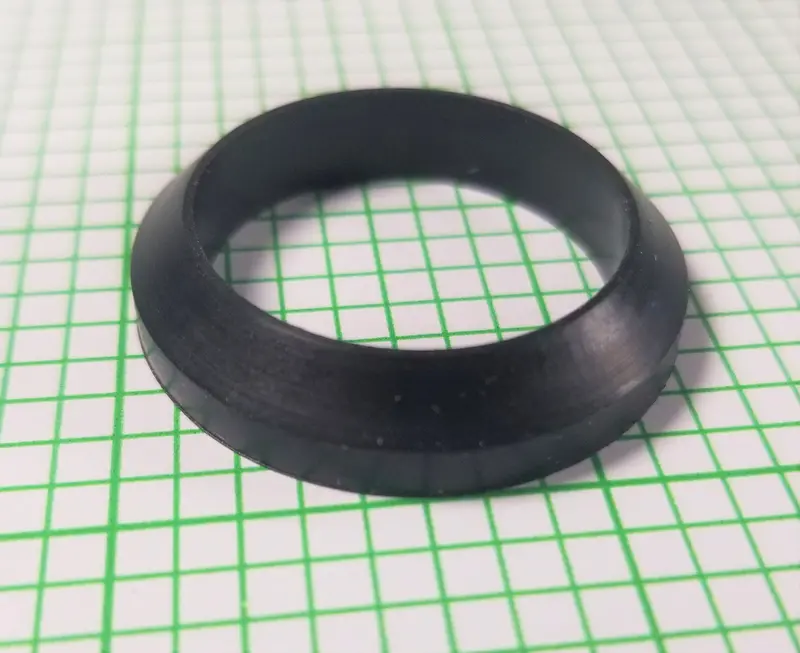

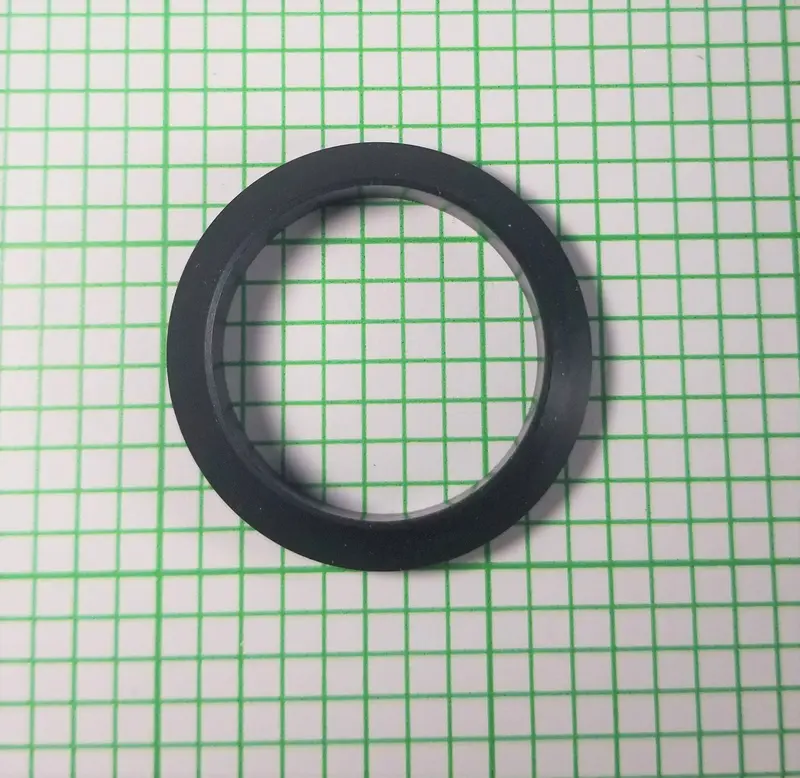

Beveled Water Meter Gasket

For Yoke Expansion Connection Wheel

For Size 3/4″, & 5/8″ x 3/4″ Water Meter

This gasket goes between the expansion wheel and round nose of an expansion wheel for a YOKE type meter setting. When changing out meters in yoke settings the yoke and expansion wheels should be fit with new gaskets to insure a watertight seal.

For inside the expansion wheel of a Yoke type meter setter only

• EPDM Rubber meets ANSI/NSF-61
• For 5/8″ x 3/4″ and full 3/4″ Water Meters

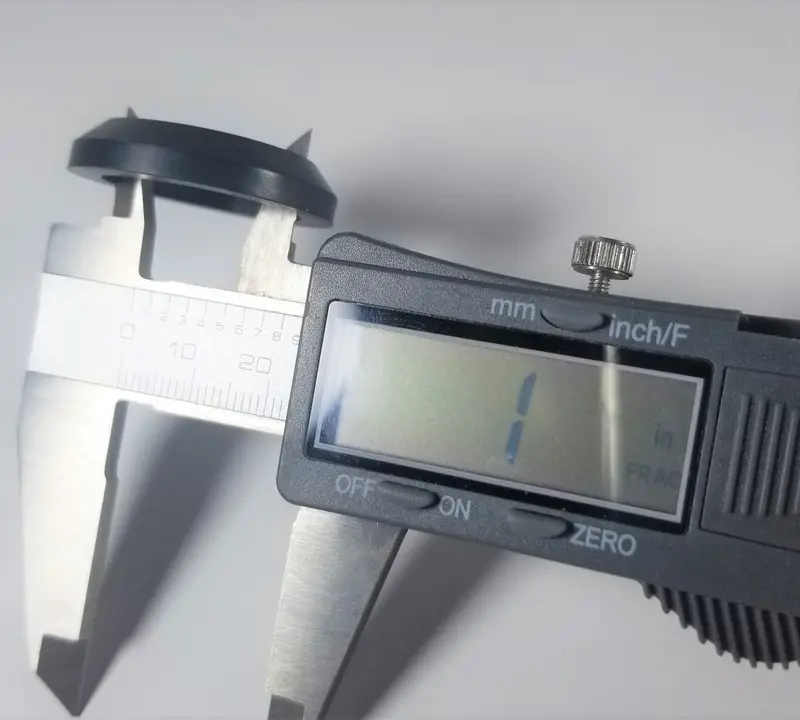

• Approximate Dimensions:
• Outside Diameter: 1-9/32″
• Inside Diameter: 1.0″
• Overall Thickness (at I.D.): 1/4″ {Bevel is approximately half of the thickness on the outer dimension}

For Expansion Connection Part Number Cross References

• Ford Meter Box EC-23-NL (Gasket = #GT-33)
• Mueller H-14234 (3/4″) (Gasket = “3/4 seal gasket”)
• A.Y. McDonald 5139-035 (Gasket = “3/4” nose piece gasket)
