5/8″ Beveled Gasket For Water Meter Yoke Expansion Wheels

Description

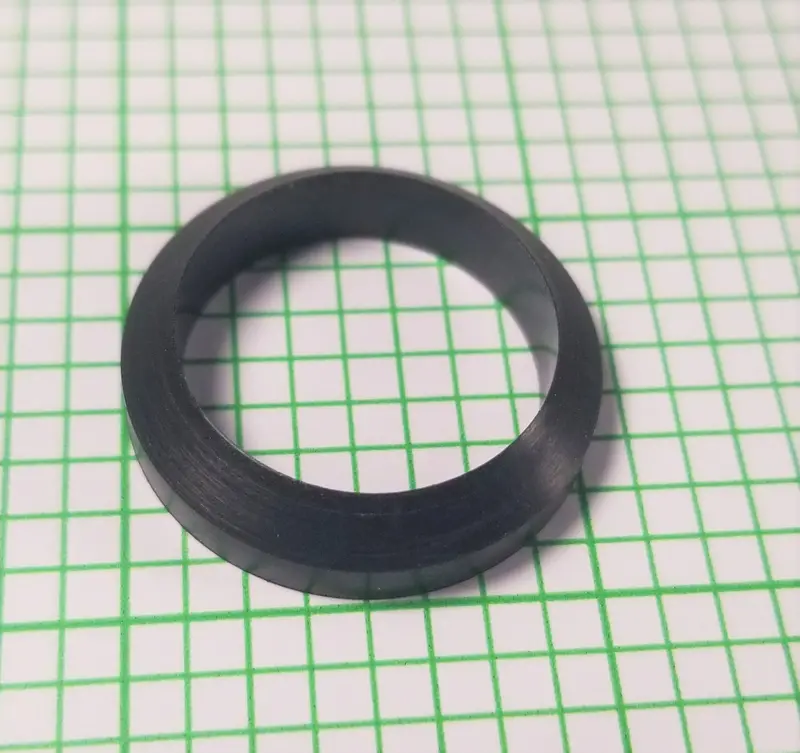

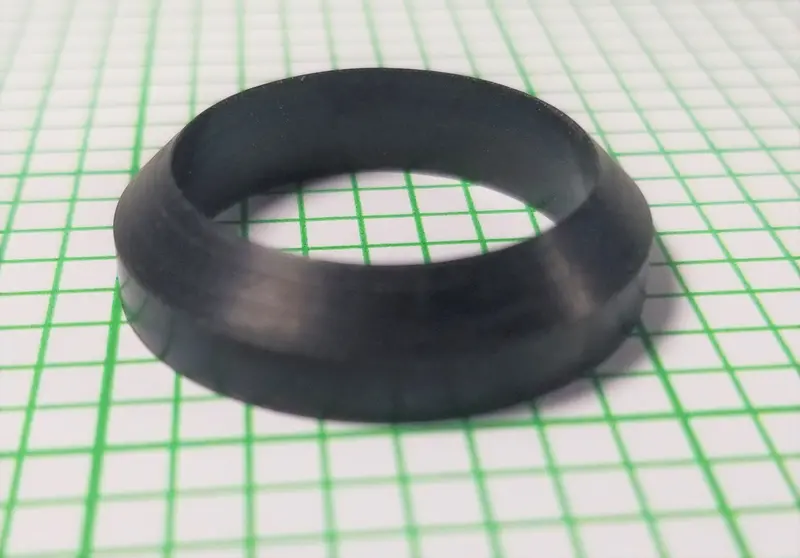

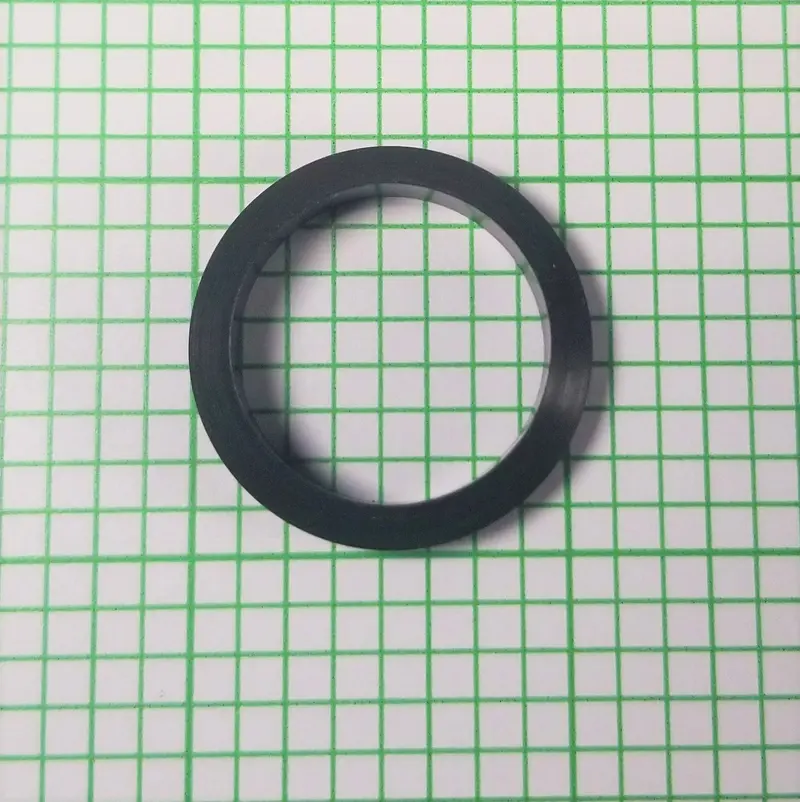

Beveled Water Meter Gasket

For Yoke Expansion Connection Wheel

Size 5/8″ Water Meter

This gasket goes between the expansion wheel and round nose of an expansion wheel for a YOKE type meter setting. When changing out meters in yoke settings the yoke and expansion wheels should be fit with new gaskets to insure a watertight seal.

• For inside the expansion wheel of a Yoke type meter setter only
• EPDM Rubber meets ANSI/NSF-61
• For 5/8″ (5/8″ x 1/2″) Water Meters
• Approximate Dimensions:
• Outside Diameter: 1-1/16″
• Inside Diameter: 27/32″
• Overall Thickness (at I.D.): 1/4″ {Bevel is approximately half of the thickness on the outer dimension}

Part Number Cross References

• Ford Meter Box: Gasket # GT-32 for Expansion Connection EC-1, EC-1-NL
• Mueller: Bevel Seal Gasket For Expansion Wheel H14234N (5/8″)
• A.Y. McDonald: Nose Gasket for Expansion Connection 14-1, 14-1x
• Trumbull: Gasket # 368-4443 for Expansion Connection 368-0630
